| NOTES: |

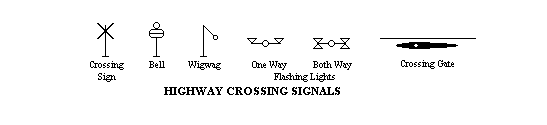

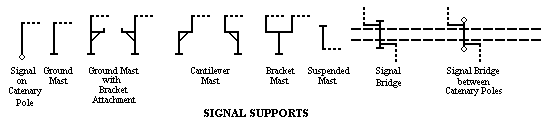

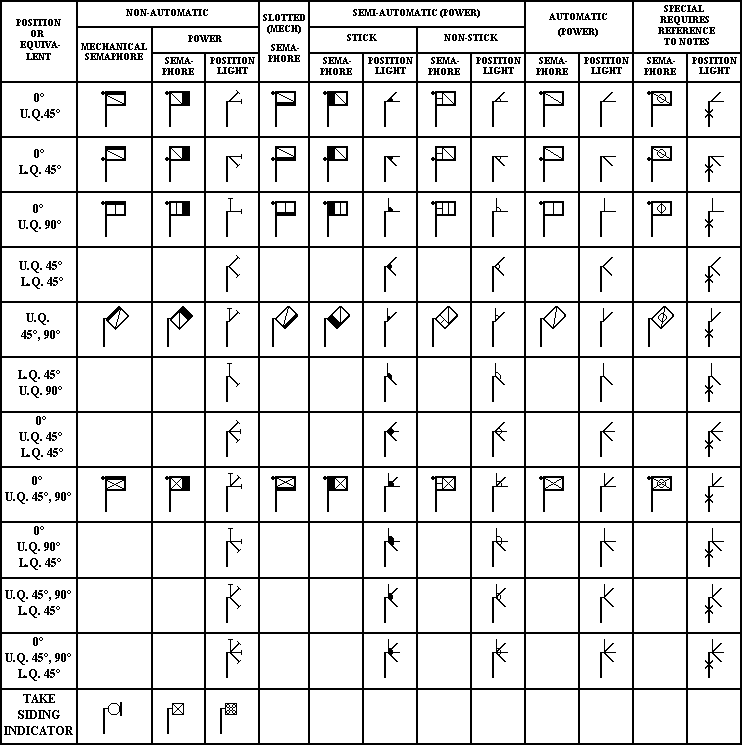

| 1) A signal not directly controlled by a lever but controlled through a track circuit
shall be shown as 'automatic' although some feature of its control may depend upon another signal which is semi-automatic. |
2) Signal arms shall be shown in normal position. Heavy line indicates normal position
or its equivalent for position light signals thus:
 |
3) Approach lighted position light signals shall be indicated by the letters AP:
 |
4) Marker lights, position light signals:
 |
5) Where a "Stop then Proceed" indication may be displayed, marker light shall be included
in the symbol for the second arm thus:
 |
6) Color light signals use semaphore characters enclosed in a circle:
 |
7) Smashboard signals:
 |
8) Grade signal:
 |
9) Disc signals:
 |
10) Slide protection:
 |
11) Flashing train order signal:
 |
12) Pedestal type signal:
 |
13) Phase break indicator:
 |
| |
